Aztec System Boiler

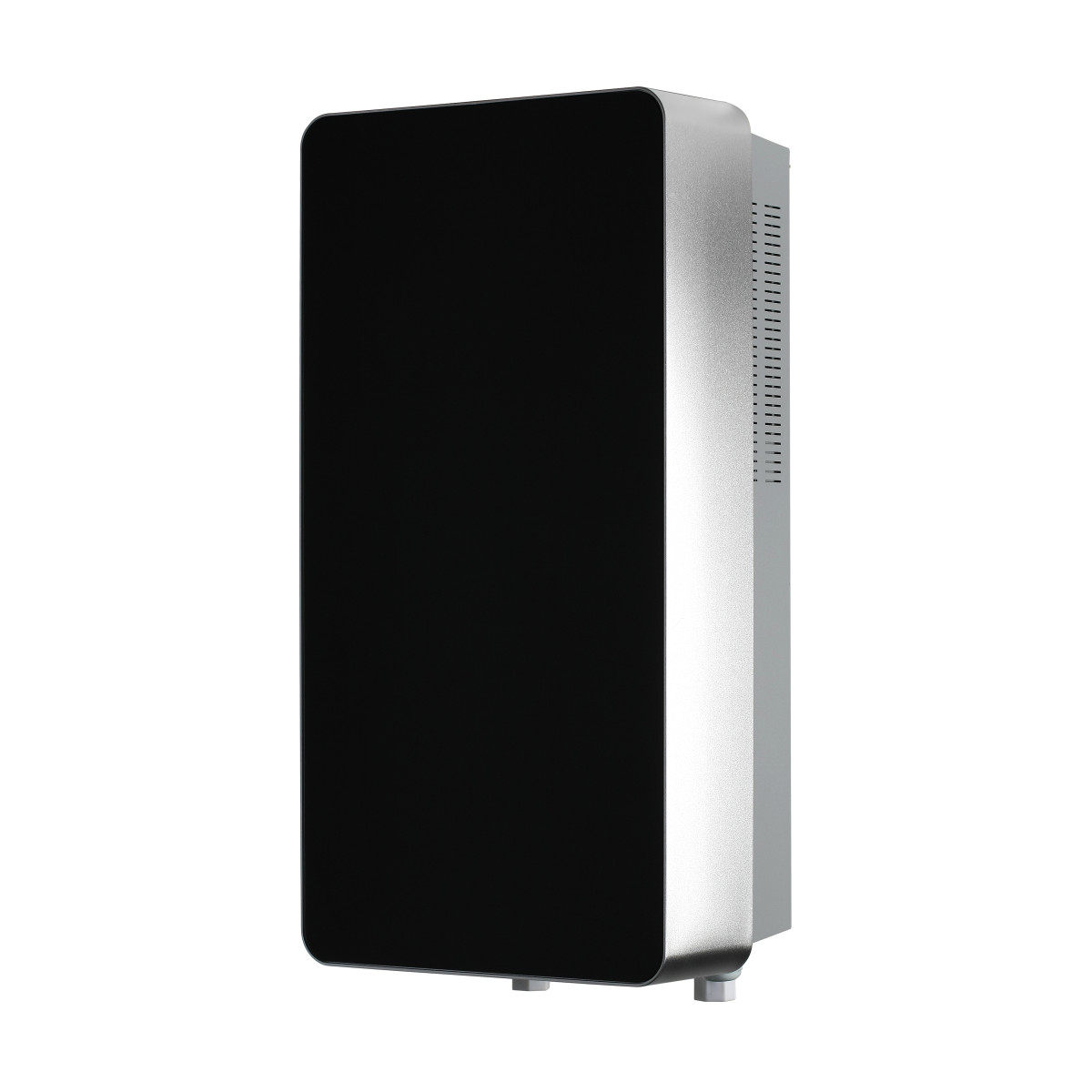

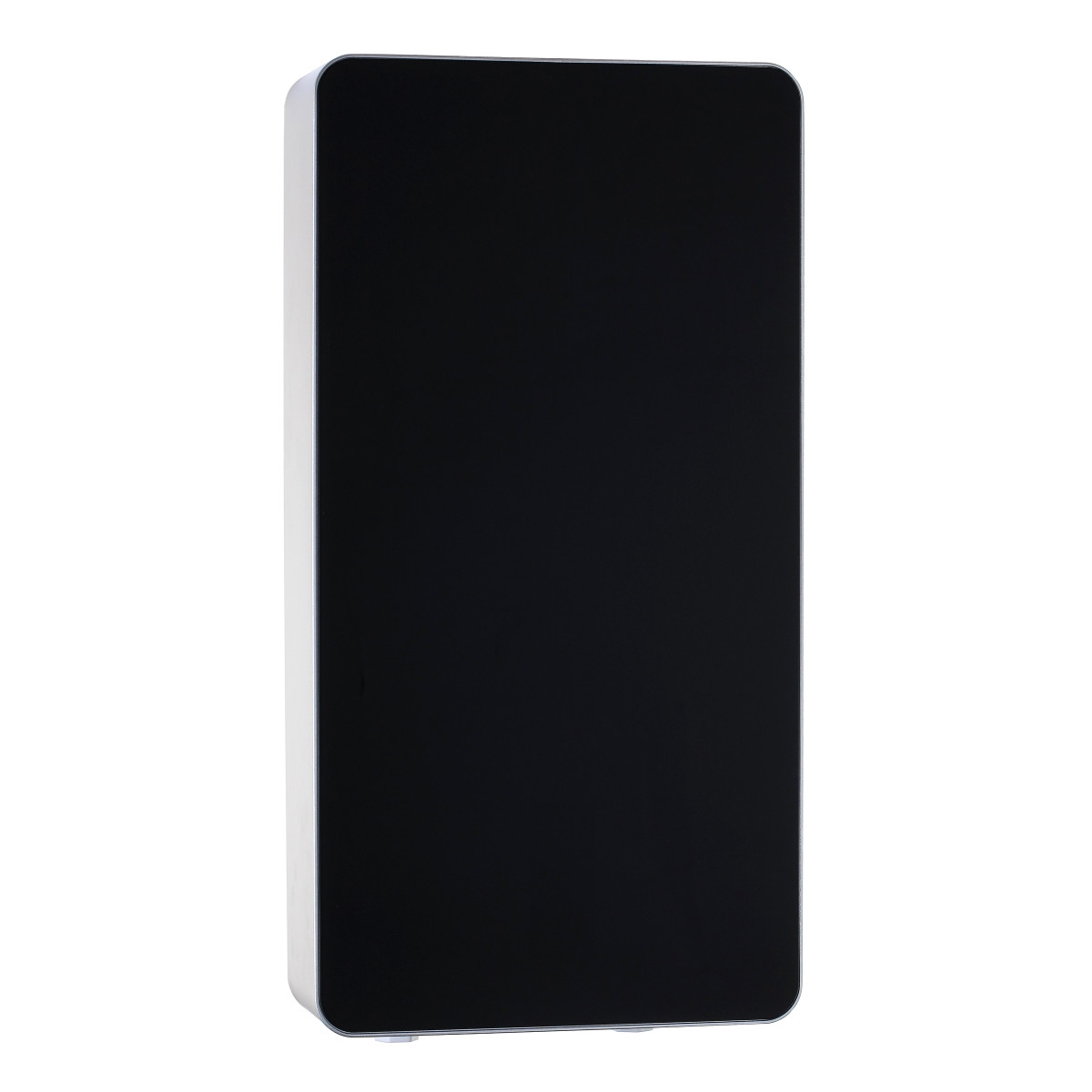

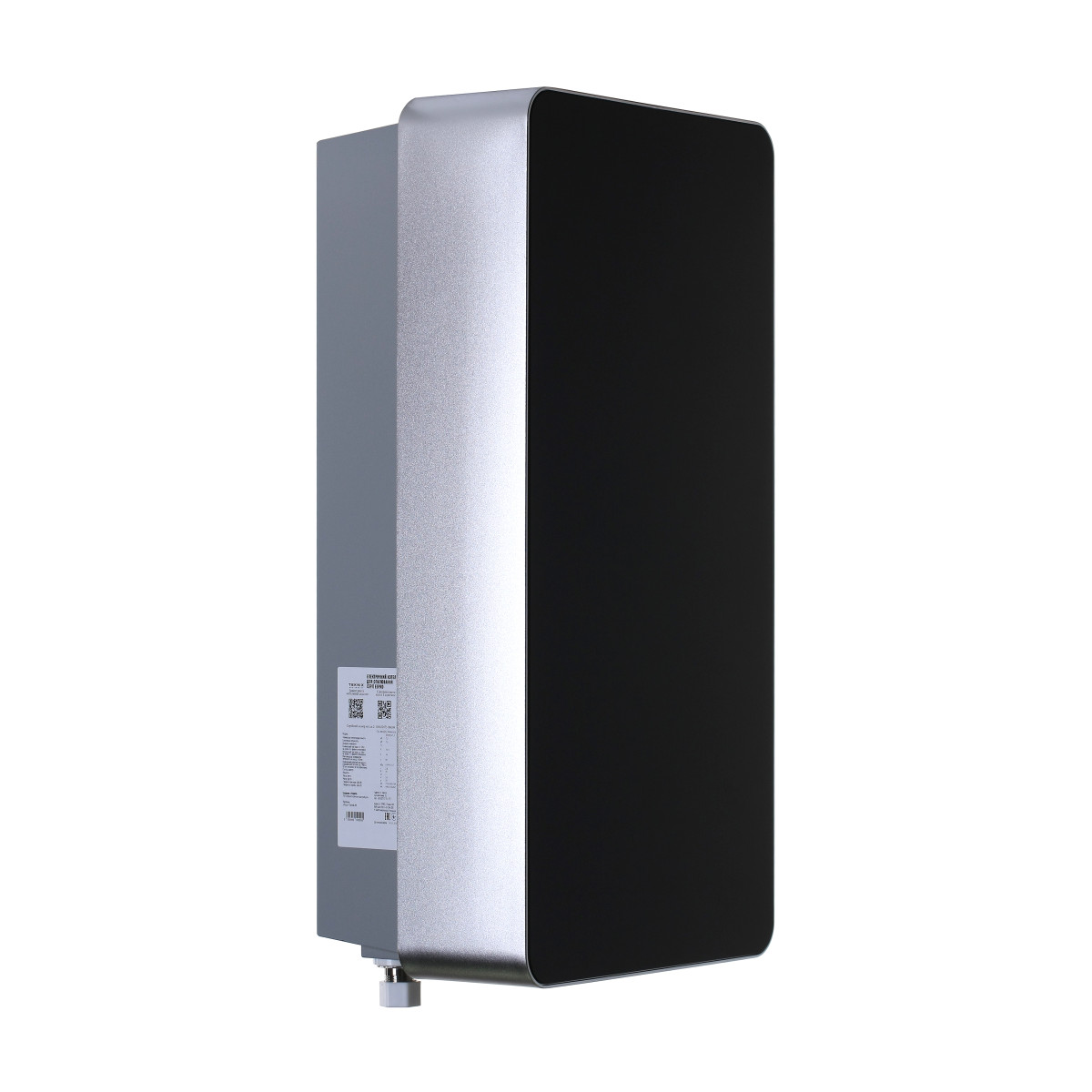

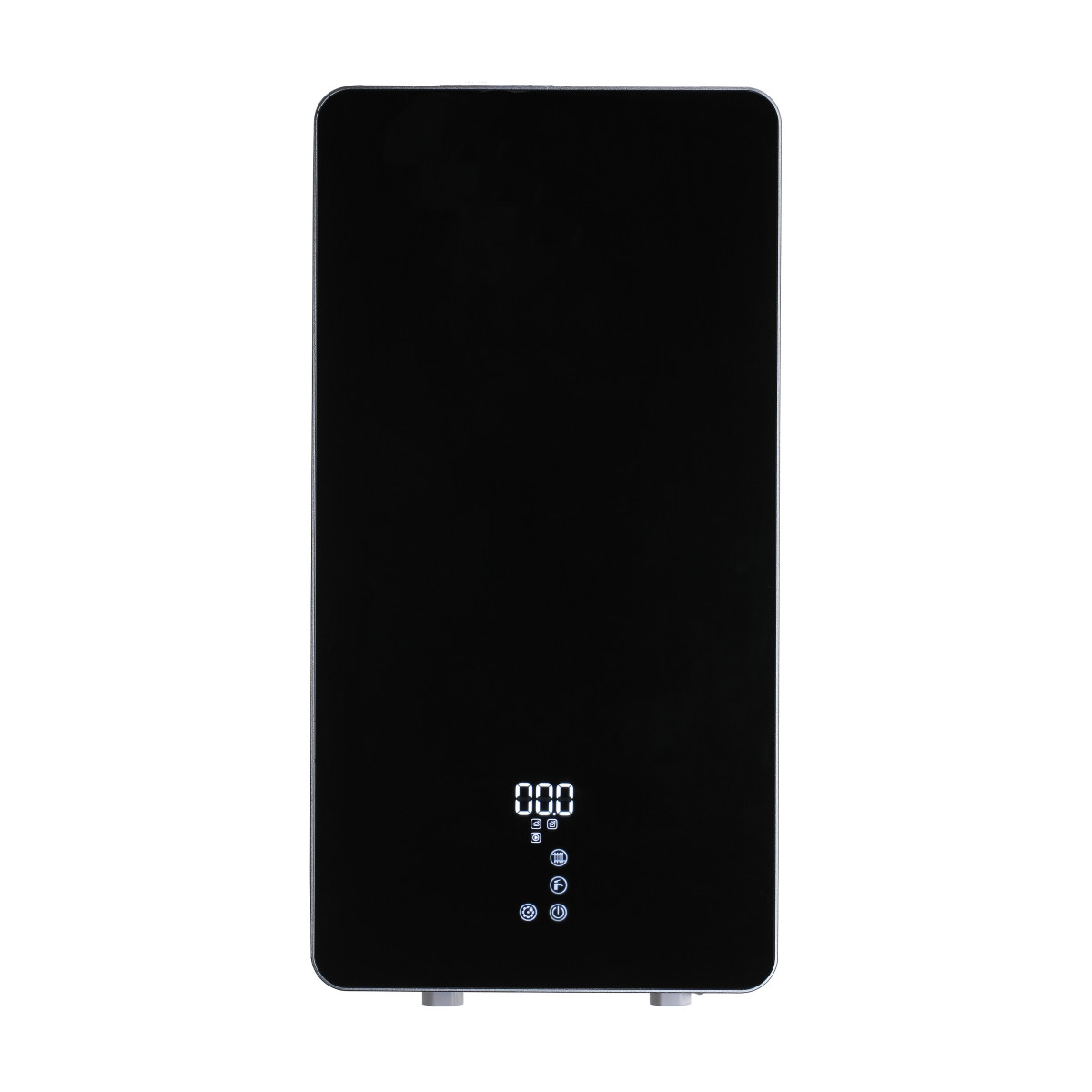

Our all new Aztec System is a neat all in one, fit and forget electric boiler that packs in all the components required to create a full heating system

Available in 4.5, 6, 9, 12 and 15kW outputs.

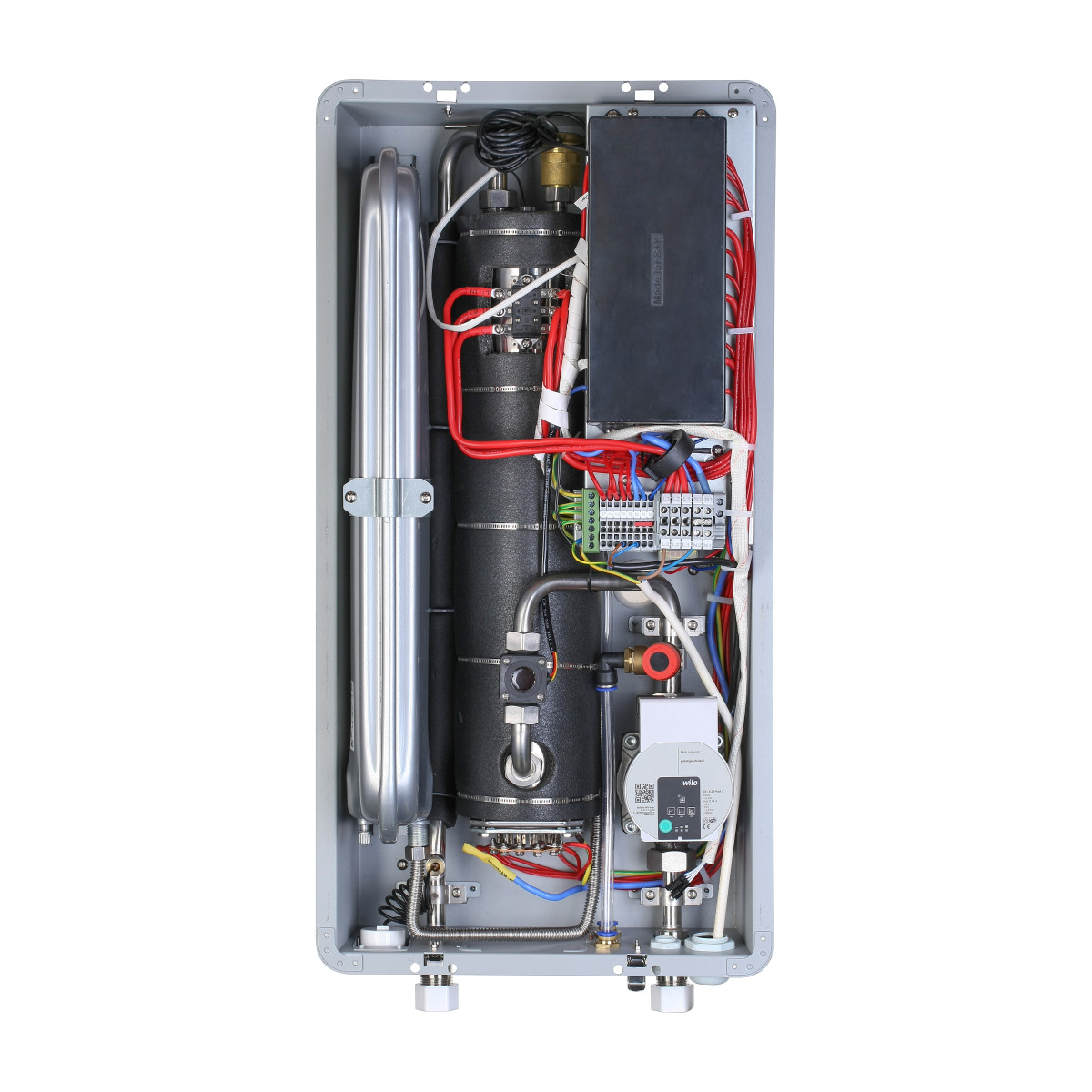

Perfectly engineered, the unit incorporates Wilo pump, auto air vent, expansion vessel and pressure gauge.

Ideal to easily fit alongside a cylinder, the Aztec System simplifies the install and removes the need for additional or unnecessary external plumbing or pipework. The Aztec System does not require any third party controls (although they can be used if desired). It is fully controllable via the simple and user friendly app with all the essential functions for controlling heating and hot water temperature including supplied room air temperature probe


Product Description



Complete with Wilo pump, expansion vessel, automatic air vent and pressure gauge

State of the art PCB

Can be installed almost anywhere

No flue required

99% efficient

Economic running costs

Virtually silent in operation

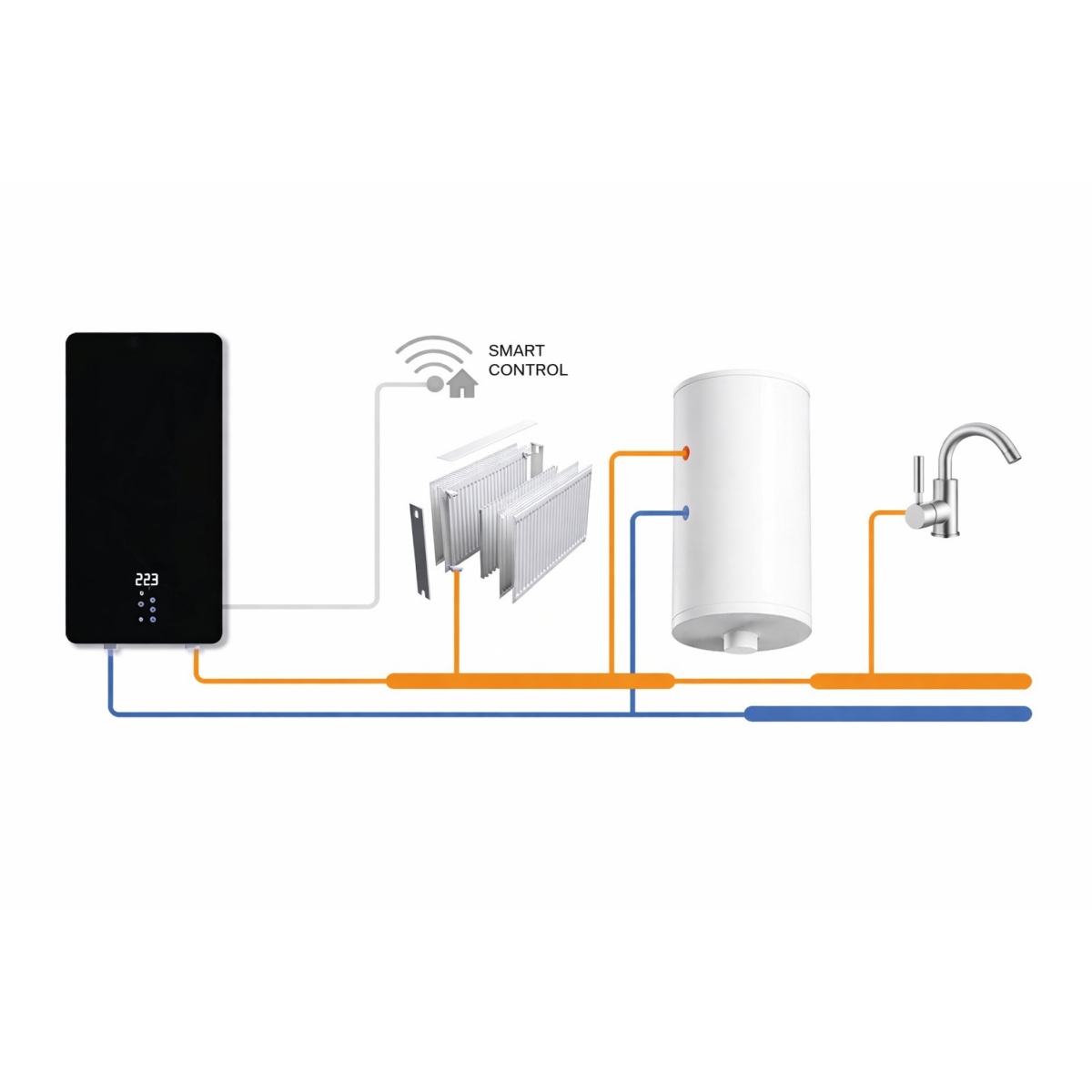

Can provide central heating only or central heating and hot water when fitted with a cylinder

Can be used for under floor heating

Multiple fail-safes fitted within the unit

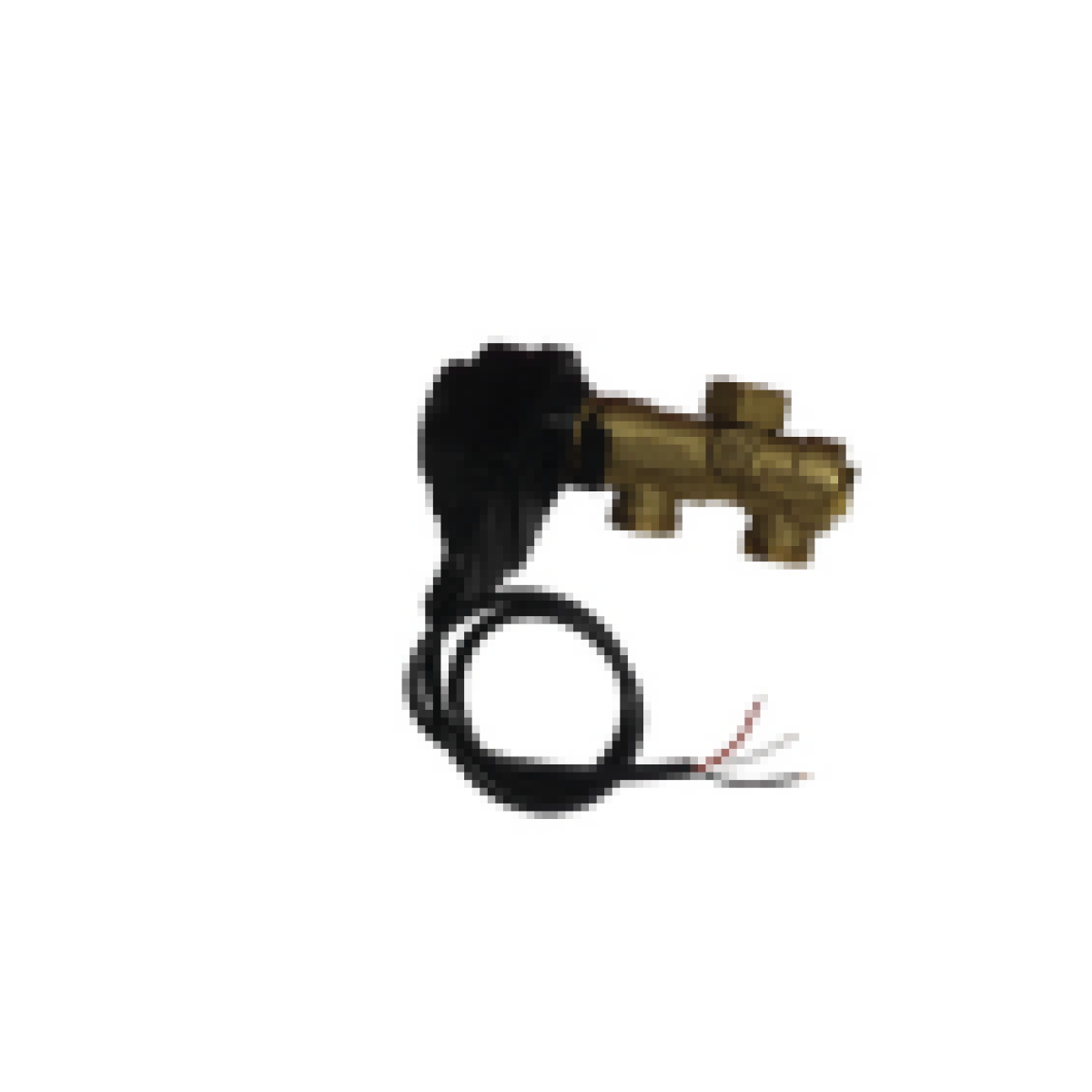

Available with optional Hydraulic 3-port Diverter Valve which connects to the flow output and is wired directly into the boiler enabling the boiler to independently control hot water and heating via the app.

Comprehensive 5 Year warranty



Dimensions (mm): 375 W x 248 D x 744 H  Weight 23kgs



Click below for more information:

Installation Manual

Brochure

Dimensions

W – 375.00mm

H – 744.00mm

D – 248.00mm

Frequently Asked Questions

A. Make sure the boiler has a flow restrictor fitted on the cold water supply to the boiler, this will slow the water down flowing through the boiler and help increase the water temperature at the tap.

A. This is due to insufficient water flow around the heating system. Usually due to air in the system or a poorly designed heating system. Check to make sure the system has a by-pass valve. Contact your installer if unsure.
